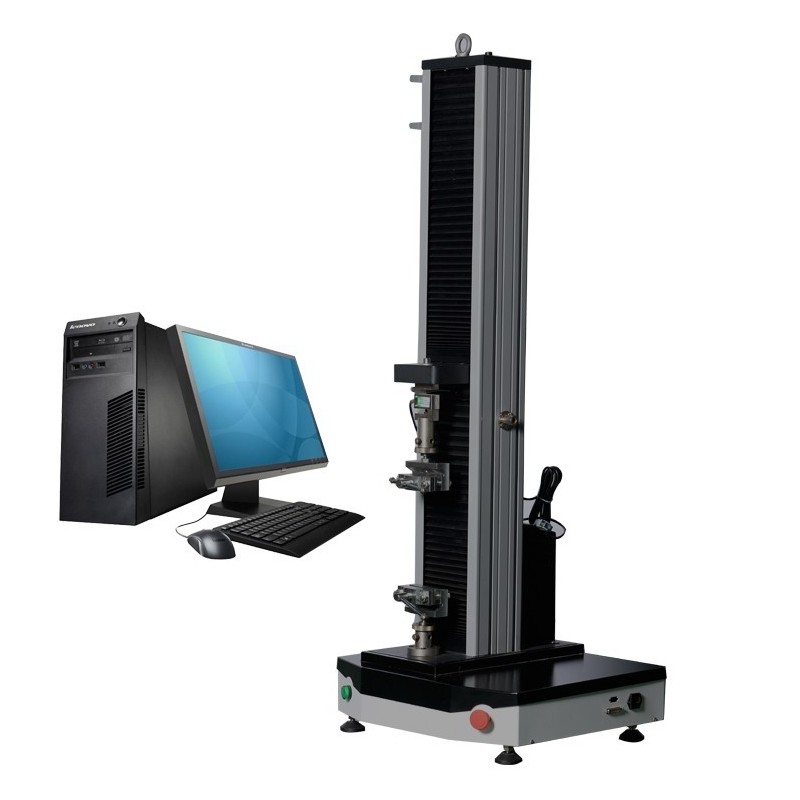

single column computer control electronic tensile testing machine
Produs nou
Suitable for industries of metal manufacturing, non-metal manufacturing, industrial and mining enterprises, technical supervision, commodity inspection and arbitration and other departments
Date suplimentare
| garantie produs in ani | 1 |
| capacitate de livrare pe luna | 50 |
| comanda minima | 25 |
| loc incarcare transport
Greutate: 90kg Volum (cm): l: 52 x L: 48 x h: 155
|
Qingdao |
| modalitati plata | plata in avans |
| tara | China |
Informatii

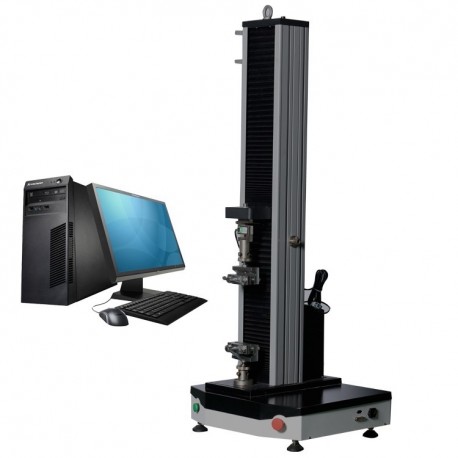

single column computer control electronic tensile testing machine
1 Introduction
l Suitable for tension, compress, shear, peeling, tear, test
l Attractive appearance, easy operating, stable and reliable
l Dual test space, upper space for tension test, bottom space for compress test
l Crossbeam speed can reach up to 1000mm/min, suitable for most test speed
l Low noise during test
l Suitable for industries of metal manufacturing, non-metal manufacturing, industrial and mining enterprises, technical supervision, commodity inspection and arbitration and other departments
2. Test method
GB/T 2611 testing machine General technical requirements
GB/T 16491 electronic universal testing machine
GB/T 13634 Calibration of standard dynamometer for single-axis testing machine inspection
ISO 376 Metallic materials-calibration of force-proving instruments used for the verification of uniaxial testing machines
GB/T 16825.1 Inspection of static single-axis testing machines - Part 1 : Tests and s
ISO 7500-1 metallic materials-verification of static uniaxial testing machines- parts 1: tension/compression testing machines-verification and calibration of the force-measuring system
GB/T 228 metal materials tensile test method at room temperature
GB/T 232 metal material bending test method
GB/T 7314 metal materials room temperature compression test method
3. Technical parameters
|
No |
Item |
Specification |
|
1 |
Force capacity |
100N,200N,500N,1000N,2000N,5000N |
|
2 |
Force measuring range |
0.4%-100%FS |
|
3 |
Error of force value |
Less than ±1% of set value |
|
4 |
Resolution of test force |
1/500000 |
|
5 |
Displacement resolution |
0.0025mm |
|
6 |
Accuracy of elongation measuring |
±0.5% |
|
7 |
Crossbeam speed range |
0.05-500mm/min |
|
8 |
Precision of displacement speed control |
±1%(0.01-10mm/min); ±0.5%(10-500mm/min) |
|
9 |
Accuracy of constant force, constant displacement, displacement elongation control |
When set value is less than 10%FS，error is less than ±1.0% of set value When set value is more than 10%FS，error is less than ±0.1% of set value |
|
10 |
Accuracy of deformation control |
When set value is less than 0.05%FS，error is less than ±2.0% of set value When set value is more than 0.05%FS，error is less than ±0.5% of set value |
|
11 |
Distance between tensile grips |
650mm |
|
12 |
Voltage |
Single phase,220V±10%,50Hz |
|
13 |
Dimension |
520x480x1550mm |
|
14 |
Weight |
80kg |
