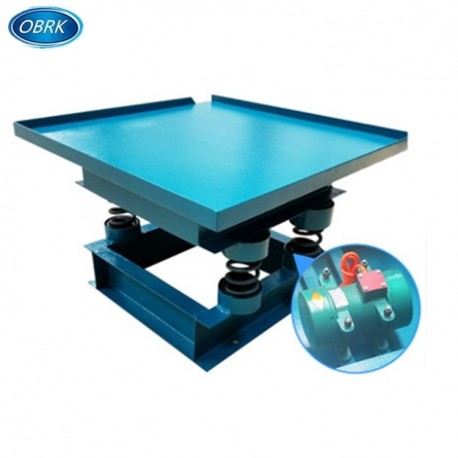

Vibrating Table for Concrete Moulds
New product
Vibrating Table for Concrete Moulds
It is used for molding of test sample of concrete and mortar in the testing laboratory.
Additional data
| supply ability per month | 1000 |
| minimum order | 1 |
| place of loading
Weight: 100kg Volume (cm): W: 90 x D: 90 x H: 30
|
China |
| payment methods | payment in advance |
| country | China |
More info
Vibrating Table for Concrete Moulds
It is used for molding of test sample of concrete and mortar in the testing laboratory. Electric vibration table is used to compact the concrete specimens by vibrating method in the laboratory, field test and so on. It has the advantages such as high production efficiency, good vibration efficiency and compaction performance, stable quality, cramped construction, low noise, easy to operate and convenient to maintain and repair.
STANDARD: EN 12350-6, -7, 12390-2, 13286-50, 1354
Technical Specifications:
|
VB-50 |
VB-80 |
VB-100 |
|
|
Vibrating table size |
500x500mm |
800x800mm |
1000x1000mm |
|
Amplitude |
0.3-0.6 mm |
0.3-0.6 mm |
0.3-0.6 mm |
|
Vibrating frequency |
2860Times/m |
2860Times/m |
2860Times/m |
|
Power |
0.55Kw |
1.1KW |
1.5KW |
|
Voltage |
220V/380V |
220V/380V |
220V/380V |
|
Maximum load |
100Kg |
200Kg |
200Kg |
