Automatic Marshall Compactor
New product
Automatic Marshall Compactor
This equipment is used for the preparation specimens for Marshall stability testing in compliance to BS 598 standard.
Additional data
| supply ability per month | 1000 |
| minimum order | 1 |
| place of loading
Weight: 150kg Volume (cm): W: 40 x D: 100 x H: 150
|
China |
| payment methods | payment in advance |
| country | China |
More info

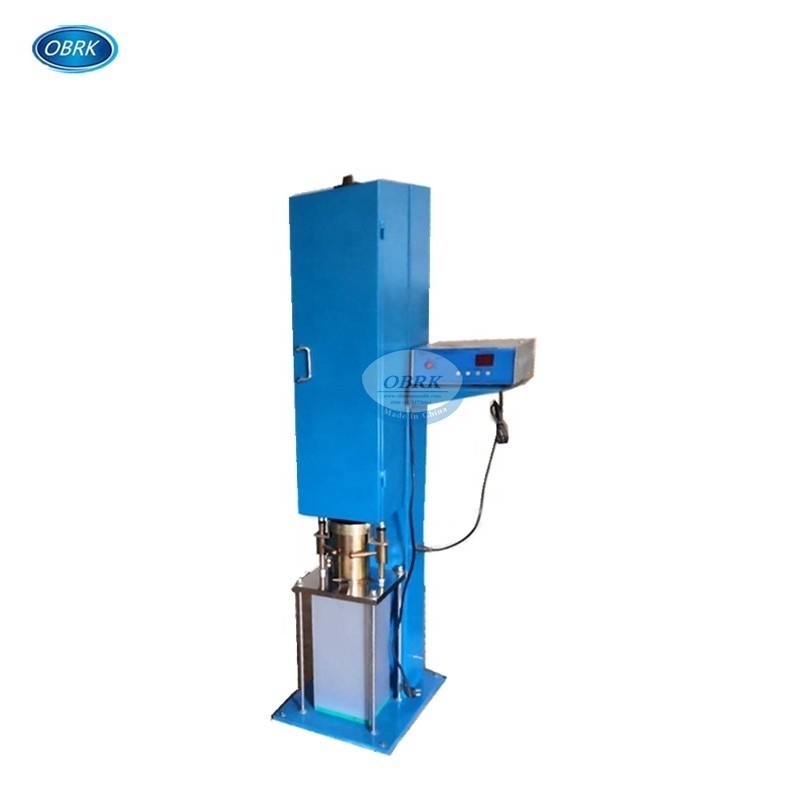

Automatic Marshall Compactor
STANDARD: EN 12697-10, 12697-30, BS 598-107
This equipment is used for the preparation specimens for Marshall stability testing in compliance to BS 598 standard. The digital controlled marshall electric compactor is suitable for preparing bituminous mix specimens (dia. 101.6mm x 63.5mm) used in marshall stability testing. The trip mechanism is designed to make the hammer fall at the same distance for every stroke. With some features of digital control, compact times to be preset freely, auto counting and easy to operate etc.
Technical Specifications:
|
Model NO. |
MDJ-N01 |
MDJ-N02 |
|
Hammer weight |
4.536Kg±0.009 Kg |
10.210Kg±0.01 Kg |
|
Hammer head |
dia. 98.5 mm |
152.4 mm |
|
cylinder dimension |
101.6 x 63.5 mm |
152.4 mm |
|
Drop height |
457.2 mm |
457±1.5mm |
|
Compact frequency |
60 RPM |
60 RPM |
|
Compact time range |
0-999 times |
0-999 times |
|
Power |
220V,370W |
220V,370W |
|
Weight |
155KG |
170KG |
