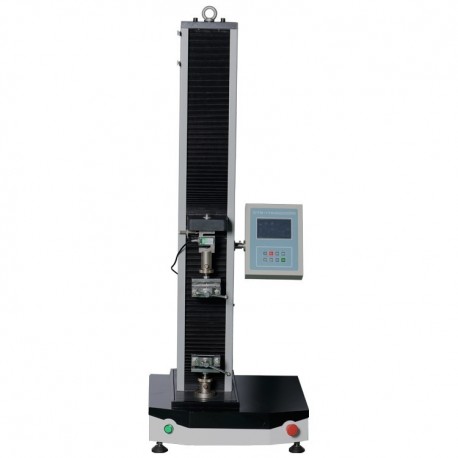

digital display single column universal tensile testing machine 5KN capacity
New product
Suitable for tension, compress, shear, peeling, tear, test
Additional data
| warranty in years | 1 |
| supply ability per month | 50 |
| minimum order | 1 |
| place of loading
Weight: 80kg Volume (cm): W: 52 x D: 48 x H: 155
|
China seaport |
| payment methods | payment in advance |
| country | China |
More info

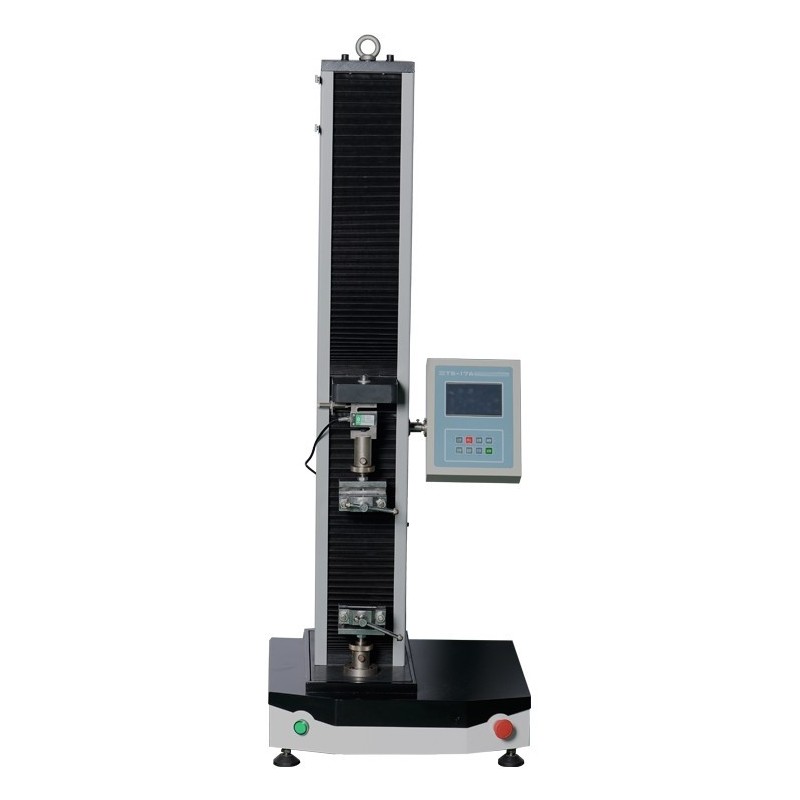

Digital display single column universal testing machine
1.brief introduction
l Suitable for tension, compress, shear, peeling, tear, test
l Attractive appearance, easy operating, stable and reliable
l Dual test space, upper space for tension test, bottom space for compress test
l Crossbeam speed can reach up to 1000mm/min, suitable for most test speed
l Low noise during test
l Suitable for industries of metal manufacturing, non-metal manufacturing, industrial and mining enterprises, technical supervision, commodity inspection and arbitration and other departments
2.technical specification
|
No |
Item |
Specification |
|
1 |
Frame |
Single column, LCD display |
|
2 |
Force capacity |
100N,200N,500N,1000N,2000N,5000N |
|
3 |
Operating menu |
English |
|
4 |
Force measuring range |
2%-100%FS |
|
5 |
Accuracy grade |
Grade 1 |
|
6 |
Error of test force |
Less than ±1% of set value |
|
7 |
Resolution of test force |
0.1N |
|
8 |
Resolution of displacement |
0.01mm |
|
9 |
Error of deformation value |
Less than ±1% |
|
10 |
Display item |
Test force, displacement, peak value, test state, test speed |
|
13 |
Motor power |
0.75KW |
|
14 |
Crossbeam speed |
0.1-500mm/min |
|
15 |
Crossbeam stroke |
800mm(Space can according to clients) |
|
16 |
Tensile space |
650mm(Space can according to clients) |
|
17 |
Compress space |
650mm(Space can according to clients) |
|
18 |
Dimension |
520x480x1550mm |
|
23 |
Voltage |
220V,50Hz |
|
24 |
Weight |
80kg |
