Ceramic Tile Pull Out Tester
New product
Ceramic Tile Pull Out Tester
This tester is used to test the bonding strength of decorative bricks, tiles, mosaics, various plates, paints, coatings, exterior wall insulation materials
Additional data
| supply ability per month | 1000 |
| minimum order | 1 |
| place of loading
Weight: 10kg Volume (cm): W: 25 x D: 20 x H: 25
|
China |
| payment methods | payment in advance |
| country | China |
More info

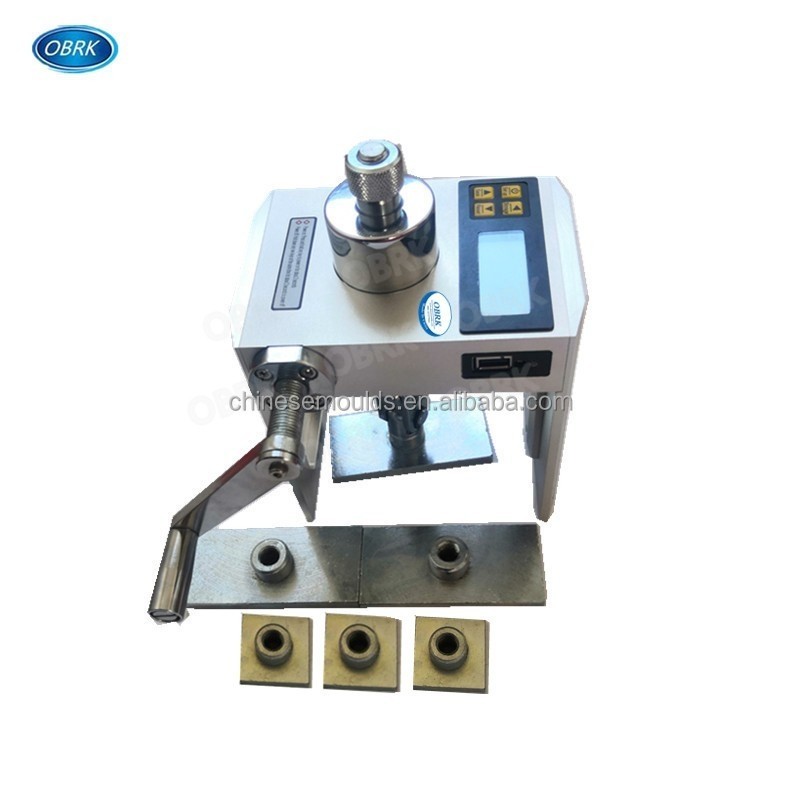

Ceramic Tile Pull Out Tester
This tester is used to test the bonding strength of decorative bricks, tiles, mosaics, various plates, paints, coatings, exterior wall insulation materials (EPS panels, SPS panels) and also be used to test the bonding strength of various exterior wall building materials and adhesives.
Technical parameters:
|
Model |
OBRK-6000C |
|
0 ~ 6.000KN/3.75MPa |
|
|
Display mode |
Mpa/KN adjustable |
|
Resolution |
0.001KN |
|
Hollow cylinder stroke |
10mm |
|
Instrument structure |
integrated |
|
Display mode |
LCD digital display |
|
Data storage |
200 pieces |
|
Data query and delete |
yes |
|
Peak keeping function |
positive peak value guarantee (guarantee time process 2min) |
|
Power supply |
battery 9 volts |
|
Zero Drift |
less than or equal to O point 1(% /4 hours + or -2 ℃) |
Consist of:
|
Description |
Quantity |
|
Test Body |
1PC |
|
Digital display pressure gauge |
1 PC (built-in) |
|
Chargers |
1PC |
|
Standard Test Blocks |
95x45mm 3PCS |
|
Standard Test Blocks |
40x40mm 3 PCS |
|
Portable box |
1PC |
