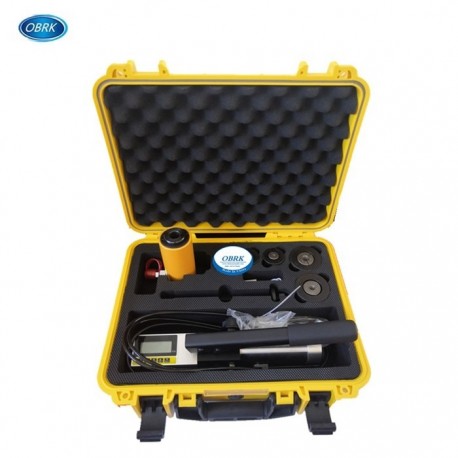

Concrete Anchor Pull out Tester
New product
Concrete Anchor Pull out Tester
It can be used for Rachel reinforcement anchoring force testing.
Additional data
| supply ability per month | 1000 |
| minimum order | 1 |
| place of loading
Weight: 25kg Volume (cm): W: 20 x D: 25 x H: 15
|
China |
| payment methods | payment in advance |
| country | China |
More info
Concrete Anchor Pull out Tester
Digital Display Anchor Pull out Tester Test Machine is used in all kinds of bolt, steel, expansion bolt anchorage of anchoring force test, the test range, fully meet the latest standard of 6 ~ 12 Φ Φ reinforced drawing requirements, can be used for Rachel reinforcement anchoring force testing.
Standard:ASTM C900, BS 1881-207, EN 1542
Technical Parameters:
|
Model NO. |
HC-V10 |
HC-V30 |
HC-V50 |
|
Measurement range |
0-10KN |
0-30KN |
0-50KN |
|
Cylinder center hole |
18mm |
18mm |
18mm |
|
Cylinder stroke |
50mm |
50mm |
50mm |
|
resolution ratio |
0.001KN |
0.001KN |
0.001KN |
|
Accuracy |
±1% |
±1% |
±1% |
Consist of :
|
Discripation |
QTY |
|
Bar hydraulic hand pump |
1PC |
|
Perforated piston jack |
1PC |
|
Flexible polyflex hydraulic hose |
3M length |
|
Retainer grips |
1PC |
|
Jaw sets |
4PCS differentt size |
|
Carry case |
1PC |
