> >>>DX Series Fabric Dye Fixation Machine
DX Series Fabric Dye Fixation Machine View larger

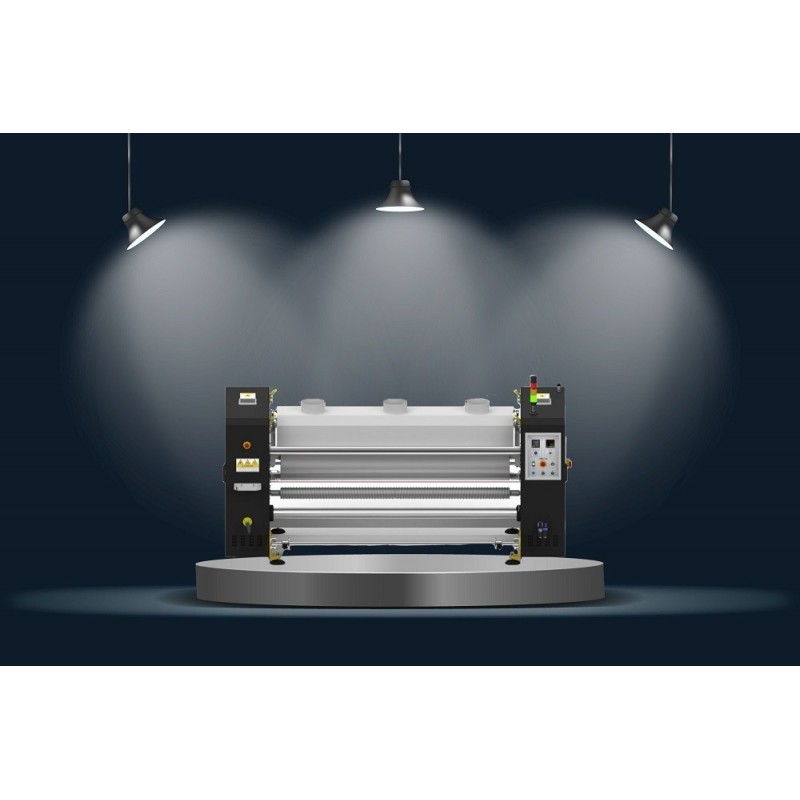

DX Series Fabric Dye Fixation Machine

New product

Our latest DX Series has evolved and includes many unique new features. We have created a truly costeffective fixation machine that is built to last, offers multiple configuration choices and the performance required for an efficient high-speed print finishing experience.

More details

17 950,00 €

Additional data

country Turkey
Weight: 1020kg
Volume (cm): W: 320 x D: 135 x H: 150

More info

DRUM SPECIFICATIONS



The drum is made of ST44 drawn steel pipe and all standard models are finished with surface grinding. On request the drum surface can also be plated with either chrome or Teflon. Inside the drum is one single heating unit that consists of three pieces. The drum is filled with transfer heating oil that fills up 60% of the inner volume. The failsafe-switch mechanism helps balance the inner pressure, and will deactivate the machine should there be any issues regarding the gasses generated by heated oil so to avoid injury or damage. The heat sensor is placed on the surface of the drum, this enables more accurate readings and provides better print results. Maximum Working Temperature and Temperature Restrictions can be easily adjusted via the Touch-Screen Panel.



CONTROL BOARD


  • Digitally adjusted Speed and Temp
  • Digital Counter


MATERIAL INPUT / OUTPUT CONTROLS

Roll Fabric

  • Input      : Manually Adjusted Fabric Tension System
  • Output   : Potency Controlled Double Roll Rewind
